IGF1R Kit ELISA

N° du produit ABIN1379965

Détail du produit IGF1R Kit ELISA

Antigène: IGF1R (Insulin-Like Growth Factor 1 Receptor (IGF1R))

Reactivité: Humain

Méthode de détection: Colorimetric

Type de méthode: Sandwich ELISA

Gamme de detection: 250-16000 pg/mL

Seuil minimal de détection: 250 pg/mL

Application: ELISA

Fonction: The OmniKine? Human IGF-1R ELISA Kit contains the components necessary for quantitative determination of natural or recombinant Human IGF-1R concentrations within any experimental sample including cell lysates, serum and plasma. This particular immunoassay utilizes the quantitative technique of a "Sandwich" Enzyme-Linked Immunosorbent Assay (ELISA) where the target protein (antigen) is bound in a "sandwich" format by the primary capture antibodies coated to each well-bottom and the secondary detection antibodies added subsequently by the investigator. The capture antibodies coated to the bottom of each well are specific for a particular epitope on Human IGF-1R while the user-added detection antibodies bind to epitopes on the captured target protein. Amid each step of the procedure, a series of wash steps must be performed to ensure the elimination of non-specific binding between proteins to other proteins or to the solid phase. After incubation and "sandwiching" of the target antigen, a peroxidase enzyme is conjugated to the constant heavy chain of the secondary antibody (either covalently or via Avidin/Streptavidin-Biotin interactions), allowing for a colorimetric reaction to ensue upon substrate addition. When the substrate TMB (3, 3', 5, 5'-Tetramethylbenzidine) is added, the reaction catalyzed by peroxidase yields a blue color that is representative of the antigen concentration. Upon sufficient color development, the reaction can be terminated through addition of Stop Solution (2 N Sulfuric Acid) where the color of the solution will turn yellow. The absorbance of each well can then be read by a spectrophotometer, allowing for generation of a standard curve and subsequent determination of protein concentration.

Marque: OmniKine™

Type d'échantillon: Cell Lysate, Serum, Plasma

Analytical Method: Quantitative

Specificité: The Human IGF-1R ELISA Kit allows for the detection and quantification of endogenous levels of natural and/or recombinant Human IGF-1R proteins.

Réactivité croisée (Details): The Human IGF-1R ELISA is capable of recognizing both recombinant and naturally produced Human IGF-1R proteins. The antigens listed below were tested at 50 ng/mL and did not exhibit significant cross reactivity or interference. Human: IGF-1, IGF-2, IGFBP-1, IGFBP-2, IGFBP-3, IGFBP-4, IGFBP-5, IGFBP-6, IL-3 sR, IL-9 sR, TGF-sR2

Attributs du produit: The Human IGF-1R ELISA Kit allows for the detection and quantification of endogenous levels of natural and/or recombinant Human IGF-1R proteins within the range of 250-16000 pg/mL.

Ingrédients:

• Microstrips Coated w / Capture Antibody: 12 x 8-Well Microstrips
• Protein Standard: Lyophilized (100 ng), Red container
• Biotinylated Detection Antibody: Lyophilized, Yellow container
• 400x Streptavidin-HRP: 30 μL, Blue container
• Wash Buffer (10x): 50 mL, Clear containter
• Assay Diluent: 50 mL, Clear container
• Ready-to-Use Substrate: 12 mL, Brown container
• Stop Solution: 12 mL, Clear container
• Adhesive Plate Sealers: 4 Sheets
• Technical Manual 1 Manual

Matériel non inclus: The following materials and/or equipment are NOT provided in this kit but are necessary to successfully conduct the experiment:
Microplate reader able to measure absorbance at 450 nm (with correction wavelength set to 540 nm or 570 nm)
Micropipettes with capability of measuring volumes ranging from 1 μl to 1 mL
Deionized or sterile water
Squirt bottle, manifold dispenser, multichannel pipette reservoir or automated microplate washer
Graph paper or computer software capable of generating or displaying logarithmic functions
Absorbent paper or vacuum aspirator
Test tubes or microfuge tubes capable of storing ≥1 mL
Bench
top centrifuge (optional)
Bench
top vortex (optional)
Orbital shaker (optional)

Information d'application

Plaque: Pre-coated

Protocole: This particular immunoassay utilizes the quantitative technique of a Sandwich Enzyme-Linked Immunosorbent Assay (ELISA) where the target protein (antigen) is bound in a sandwich format by the primary capture antibodies coated to each well-bottom and the secondary detection antibodies added subsequently by the investigator. The capture antibodies coated to the bottom of each well are specific for a particular epitope on the Human IGF-1R cytokine while the user-added detection antibodies bind to epitopes on the captured target protein. Amid each step of the procedure, a series of wash steps must be performed to ensure the elimination of non-specific binding between proteins to other proteins or to the solid phase. After incubation and sandwiching of the target antigen, a peroxidase enzyme is conjugated to the constant heavy chain of the secondary antibody (either covalently or via Avidin/Streptavidin-Biotin interactions), allowing for a colorimetric reaction to ensue upon substrate addition. When the substrate TMB (3, 3’, 5, 5’- Tetramethylbenzidine) is added, the reaction catalyzed by peroxidase yields a blue color that is representative of the antigen concentration. Upon sufficient color development, the reaction can be terminated through addition of Stop Solution (2 N Sulfuric Acid) where the color of the solution will turn yellow. The absorbance of each well can then be read by a spectrophotometer, allowing for generation of a standard curve and subsequent determination of protein concentration.

Préparation de l'échantillon:

If samples are to be used within 24 hours, aliquot and store at 4 °C. If samples are to be used over a long period of time, aliquot and store between -20 °C and -80 °C, depending on the duration of storage.
Note: Samples containing a visible precipitate or pellet must be clarified prior to use in the assay.
Caution: Avoid repeated freeze/thaw cycles to prevent loss of biological activity of proteins in experimental samples.

• Cell Lysate and Supernatants:
  Remove large cell components via centrifugation and perform the assay. Cell lysates and supernatants require a dilution using Assay Diluent. A serial dilution may be performed to determine a suitable dilution factor for the sample. For future use of the sample, follow the sample storage guidelines stated above.
• Serum:
  Allow samples to clot in a serum separator tube (SST) for 30 minutes. After sufficient clotting, centrifuge at 1000 x g for 15 minutes and remove serum from SST in preparation for the assay. Serum samples require at least a 1:50 dilution using Assay Diluent. For future use of the sample, follow the storage guidelines above.
• Plasma:
  Use heparin, citrate or EDTA as an anticoagulant to gather plasma from original biological sample. After collection of the plasma, centrifuge for 15 minutes at 1000 x g. This step must be performed within 30 minutes of plasma collection. Plasma samples require at least a 1:50 dilution using Assay Diluent. Afterwards, perform the assay or for future use of the sample, follow the storage guidelines stated above.

Procédure de l'essai:

Note: If possible, all incubation steps should be performed on an orbital shaker to equilibrate solutions when added to the microplate wells. Also, all provided solutions should be at ambient temperature prior to use.
Note: Avoid adding solutions into wells at an angle, always keep pipette tip perpendicular to plate bottom.

Reconstitution of Provided Materials:

1. Reconstitute the Biotin-Conjugated Detection Antibody in 67 µL of ddH₂O for a concentration of 180 µg/ml.
2. Reconstitute the Protein Standard in 100 µL of ddH₂O for a concentration of 340 ng/ml.
3. Dilute the 50 mL of 10x Wash Buffer in 450 mL of ddH2O for 500 mL of 1x Wash Buffer.

Addition of Known Standard and Unknown Sample to Immunoassay:

The OmniKine™ Human CD163 ELISA Kit allows for the detection and quantification of endogenous levels of natural and/or recombinant Human CD163 proteins

Calcul des résultats:

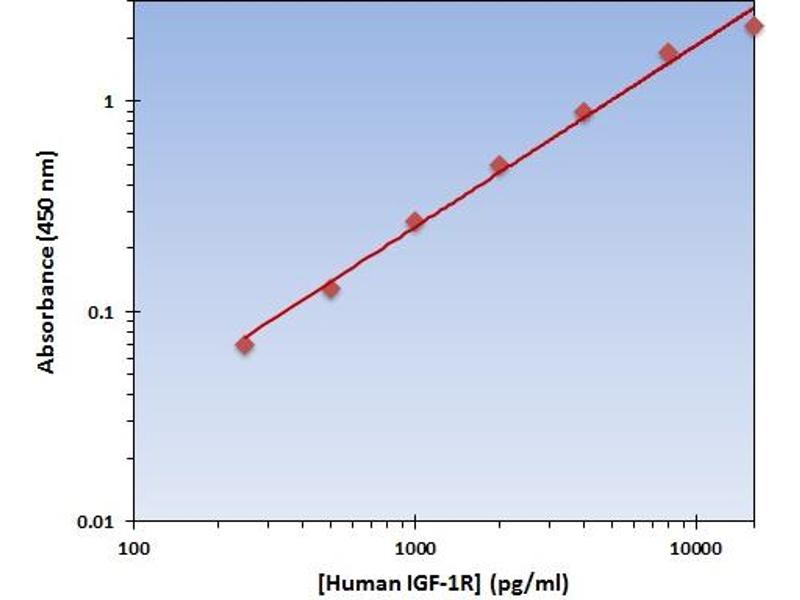

Generation of Standard Curve and Interpretation of Data
1. Average the duplicate or triplicate readings for each standard, control and sample and subtract the average zero standard optical density.
2. Generate a standard curve by using Microsoft Excel or other computer software capable of establishing a 4- Parameter Logistic (4-PL) curve fit. If using Excel or an alternative graphing tool, plot the average optical density values in absorbance units (y-axis) against the known standard concentrations in pg/ml (x-axis). Note: Only use the values in which a noticeable gradient can be established. Afterwards, generate a best fit curve or trend-line through the plotted points via regression analysis.

Restrictions: For Research Use only

Stockage

Précaution d'utilisation: Reagents provided in this kit may be harmful if ingested, inhaled or absorbed through the skin. Please carefully review the MSDS for each reagent before conducting the experiment.
Stop Solution contains 2 N Sulfuric Acid (H2SO4) and is an extremely corrosive agent. Please wear proper eye, hand and face protection when handling this material. When the experiment is finished, be sure to rinse the plate with copious amounts of running water to dilute the Stop Solution prior to disposing the plate.

Conseil sur la manipulation: This ELISA kit is intended for research purposes only, NOT diagnostic or clinical procedures of any kind.
Materials included in this kit should NOT be used past the expiration date on the kit label.
Reagents or substrates included in this kit should NOT be mixed or substituted with reagents or substrates from any other kits.
Variations in pipetting technique, washing technique, operator laboratory technique, kit age, incubation time or temperature may cause differences in binding affinity of the materials provided.
The assay is designed to eliminate interference and background by other cellular macromolecules or factors present within any biological samples. However, the possibility of background noise cannot be fully excluded until all factors have been tested using the assay kit.

Reagents provided in this kit may be harmful if ingested, inhaled or absorbed through the skin. Please carefully review the MSDS for each reagent before conducting the experiment.
Stop Solution contains 2 N Sulfuric Acid (H2SO4) and is an extremely corrosive agent. Please wear proper eye, hand and face protection when handling this material. When the experiment is finished, be sure to rinse the plate with copious amounts of running water to dilute the Stop Solution prior to disposing the plate.

Stock: 4 °C

Stockage commentaire: Note: If used frequently, reagents may be stored at 4 °C.

• Unopened Kits: Store at 4 °C for 6 months.
• Microstrips Coated w/ Capture Antibody, 400x Streptavidin-HRP Wash Buffer (10x), Assay Diluent Ready-to-Use Substrate, Stop Solution: 6 Months at 4 °C
• Protein Standard, Biotinylated Detection Antibody: Lyophilized: 6 Months (if Reconstituted: 1 Month) at 4 °C

Détail du antigène

Antigène: IGF1R (Insulin-Like Growth Factor 1 Receptor (IGF1R))

Autre désignation: IGF-1R (IGF1R Produits)

Synonymes: CMT2N Kit ELISA, CD221 Kit ELISA, IGFIR Kit ELISA, IGFR Kit ELISA, JTK13 Kit ELISA, IGFIRC Kit ELISA, IGFR1 Kit ELISA, IGF-1R Kit ELISA, IGF1R Kit ELISA, DKFZp469I0618 Kit ELISA, igf-1r Kit ELISA, xIGF-1R Kit ELISA, xIGFR Kit ELISA, xigf1r Kit ELISA, A330103N21Rik Kit ELISA, D930020L01 Kit ELISA, hyft Kit ELISA, igf-ir Kit ELISA, IGF-IR Kit ELISA, IGF-IRb Kit ELISA, wu:fb03h06 Kit ELISA, IGF-IRa Kit ELISA, sb:eu1090 Kit ELISA, wu:fi20b10 Kit ELISA, alanyl-tRNA synthetase Kit ELISA, insulin like growth factor 1 receptor Kit ELISA, insulin-like growth factor 1 receptor Kit ELISA, insulin-like growth factor 1 Kit ELISA, insulin-like growth factor I receptor Kit ELISA, insulin like growth factor 1 receptor S homeolog Kit ELISA, insulin-like growth factor 1b receptor Kit ELISA, insulin-like growth factor 1a receptor Kit ELISA, AARS Kit ELISA, IGF1R Kit ELISA, Igf1r Kit ELISA, igf1r Kit ELISA, Igf1 Kit ELISA, LOC780503 Kit ELISA, LOC100136427 Kit ELISA, igf1r.S Kit ELISA, igf1rb Kit ELISA, igf1ra Kit ELISA

Sujet: IGF-1R binds insulin-like growth factor 1 (IGF1) with a high affinity and IGF2 with a lower affinity. It has a tyrosine-protein kinase activity, which is necessary for the activation of the IGF1-stimulated downstream signaling cascade. When present in a hybrid receptor with INSR, binds IGF1. Hybrid receptors composed of IGF1R and INSR isoform Long are activated with a high affinity by IGF1, with low affinity by IGF2 and not significantly activated by insulin, and that hybrid receptors composed of IGF1R and INSR isoform Short are activated by IGF1, IGF2 and insulin. In contrast, shows that hybrid receptors composed of IGF1R and INSR isoform Long and hybrid receptors composed of IGF1R and INSR isoform Short have similar binding characteristics, both bind IGF1 and have a low affinity for insulin. This receptor is a tetramer of 2 alpha and 2 beta chains linked by disulfide bonds. The alpha chains contribute to the formation of the ligand-binding domain, while the beta chain carries the kinase domain. Interacts with PIK3R1 and with the PTB/PID domains of IRS1 and SHC1 in vitro when auto-phosphorylated on tyrosine residues. Forms a hybrid receptor with INSR, the hybrid is a tetramer consisting of 1 alpha chain and 1 beta chain of INSR and 1 alpha chain and 1 beta chain of IGF1R. It interacts with ARRB1, ARRB2, GRB10, and GNB2L1/RACK1. The cytoplasmic domain of the beta subunit is auto-phosphorylated on tyrosine residues in response to insulin-like growth factor I (IGF I). Phosphorylation of Tyr-980 is required for IRS1- and SHC1-binding. Source: Entrez Gene, Swiss-Prot

Pathways: Signalisation RTK, Regulation of Hormone Metabolic Process, Regulation of Hormone Biosynthetic Process, Autophagy
